Flexible Nozzles
Need a quotation for this product?
Send us your line speed, the material you are working with and the destination country. Our engineers reply with a price and a delivery time within one working day.
Or email [email protected] · Tel +86-769-33829612
Product Details

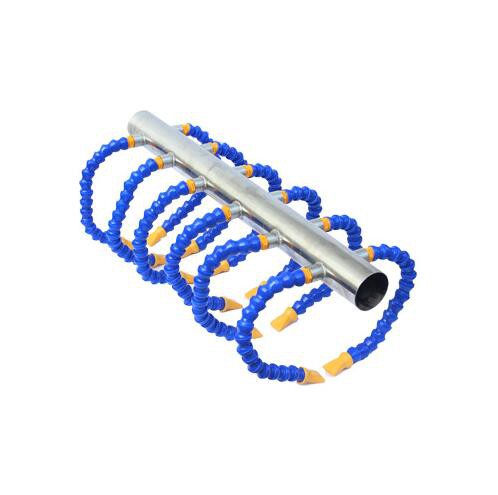

SCB spider air knife is consists of spider arm and manifold, the material of main pipe is SS304 and outlet is flat design to make sure when the air comes out is still strong and good drying.
The spider arms are flexible nozzles, you can adjust the length as needed, the standard length is 400mm,

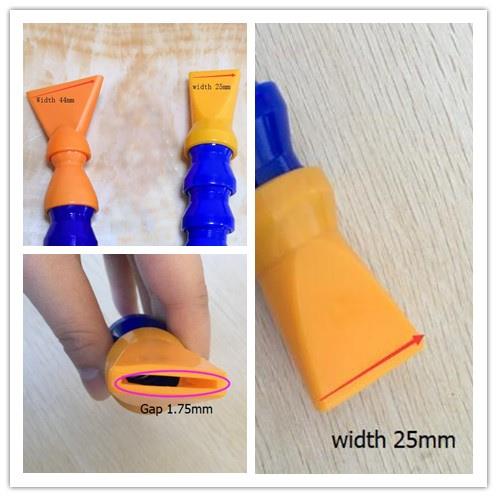

Flexible nozzles dimension:
Features
1. Spider air knife is consists of spider arms and manifold.
2. Material and outlet is flat design to make sure when the air comes out is still strong and good drying.
3. Material of main pipe is stainless steel 304, length can be customized.
4. Material of spider arm is Polyoxymethylene (POM), the available temperature range from -50 to 100 ℃,
enjoy a good wear resistance and temperature resistance.
5. Flexibility air outlet as much possible to close the bottle and provide better drying effect.
6. Installation of air arms are arranged as a ladder which can cove the bottle from top to bottom,
this appearance in accordance with the principle of fluid mechanics.
7. Spider arm is adjustable, length and quantity can be customized. Suitable for all kinds of bottles.
8. Compared with normal air knife, using spider air knife the sigle bottle blowing time is 3-5times higher
and frequency is 10-20 times more.
Advantages
1. Design according to aerodynamics, lower air pressure and uniform speed.
2. Can bear 5kgf/cm2 pressure, air speed can reach 400m/s; Max temperature reaches 250℃.
3. Suitable size, save the space.
4. Reduce production costs and increase throughput.
