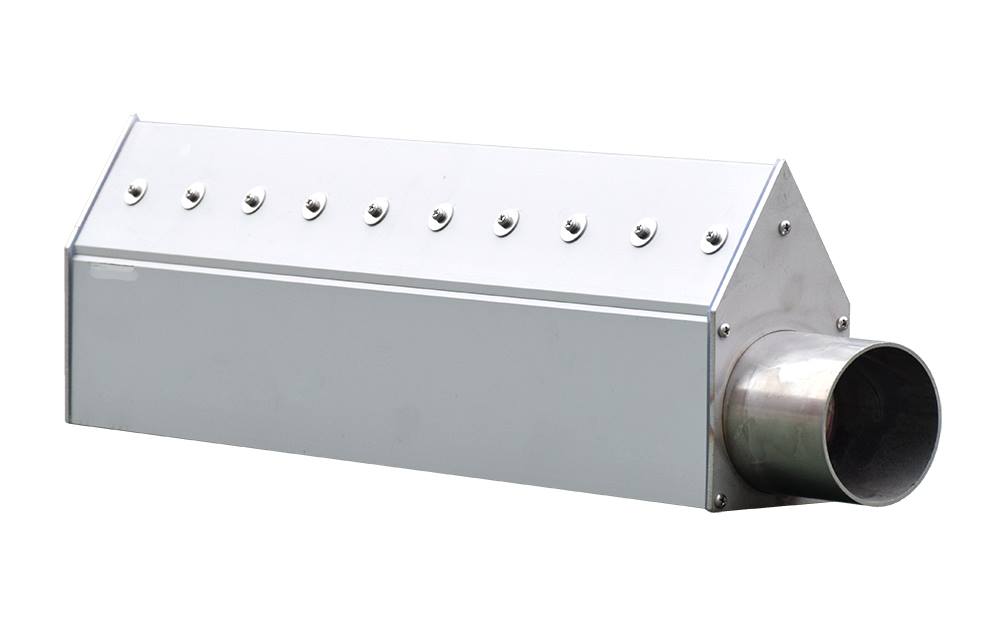

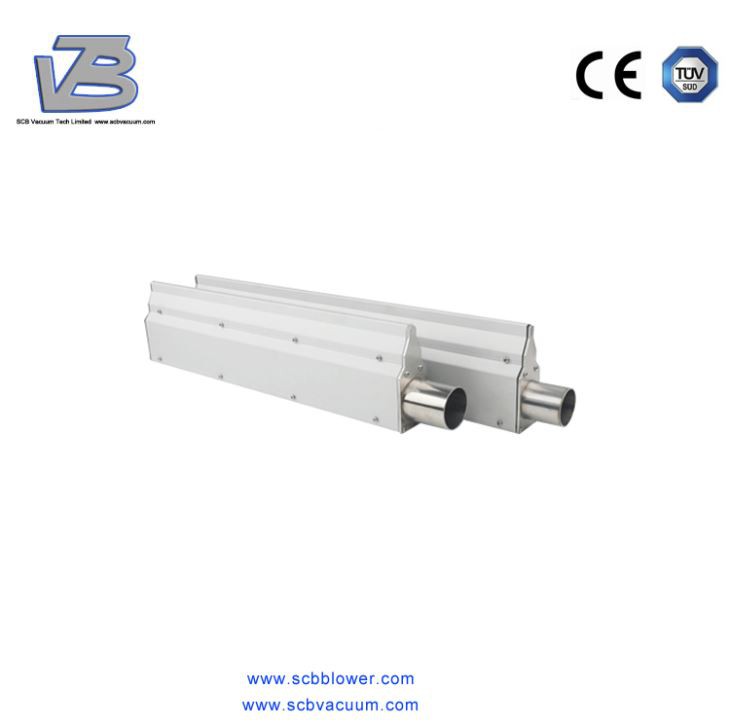

Blower Air Knife

Product Details

SCB Blower Air Knives are made of an anodized aluminum body and a hard-anodized “cap”.

Stainless steel models are available for high temperature and corrosive applications.

Multiple air inlet ports on either the back or ends in a compact design with additional mounting holes on the back.

Basic Info

• Model NO.: SCB-AL-500mm

• Structure: blower aluminium alloy air knife

• Material: aluminium alloy

• Inlet: 38mm, 51mm( 1'', 2'')

• Length: 500mm

• Max Airflow: 1247m3/h

• Net weight: 0.5kgs

• Packages: packed in cartons

• Origin: China

• Trademark: SCB

SCB Blower Air Knife Features:

• 1. Outlet is adjustable (0.3-3mm).

• 2. Inlet can be customized (Max size is 51mm).

• 3. Material is aluminum alloy with anodized / hard anodized, acid and alkali resistant.

• 4. Cost-effective, save space and easy install.

• 5. The max borne pressure is 5kgf/cm2, and speed reaches 400m/s.

• 6. Hot air is available, temperature can bear 250℃.

• 7. Small air resistance and sym meterical speed.

• SCB Blower Air Knife Attentions:

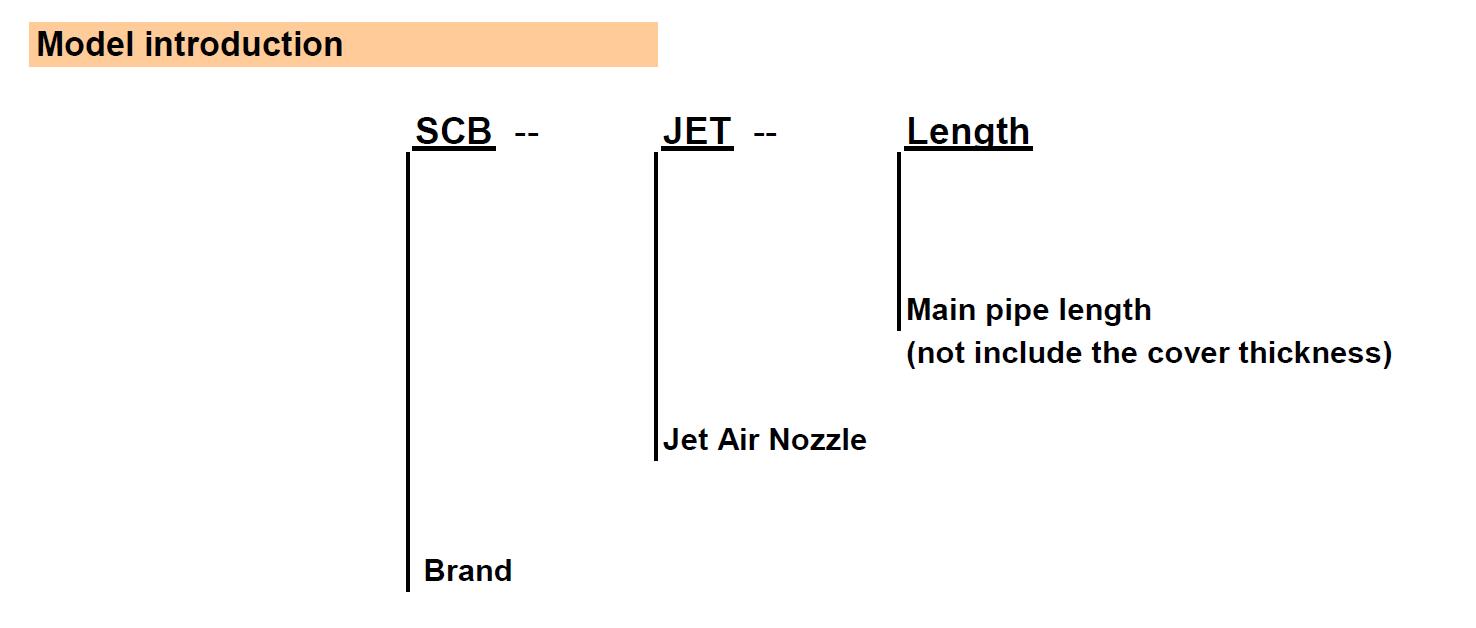

• 1. Aluminum alloy air knife, eg: SCB - AL - 500mm, the effective length is 500mm,

• outlet size normally is 1mm (if have special requirement, please inform), material is aluminum alloy.

• 2. When purchase, the effect length is C, not include the cover thickness is both sides.

• Eg: air knife length is 500mm, if add the cover thickness, the real length is 510mm.

• 3. Please avoid collision for the air knife edge during using. The air shouldn't have much thick dust,

• or will obstruct or damage the air knife.

• 4. Air knife outlet was completely made as standard before leave factory (except the special request).

• If need to change, please contact SCB team or consult the professional person
