Product Details
SCB super ring air knife, also know as super air scrubber/ ring air knife/ air ring scrubber/ round air knife, in the case of minimal air consumption, the airflow were amplified more than 25 times, under the Coanda effect, and forms the 360° cone-shaped high-speed equilibrium and has a high impinging airflow.

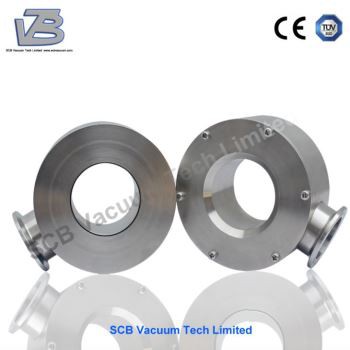

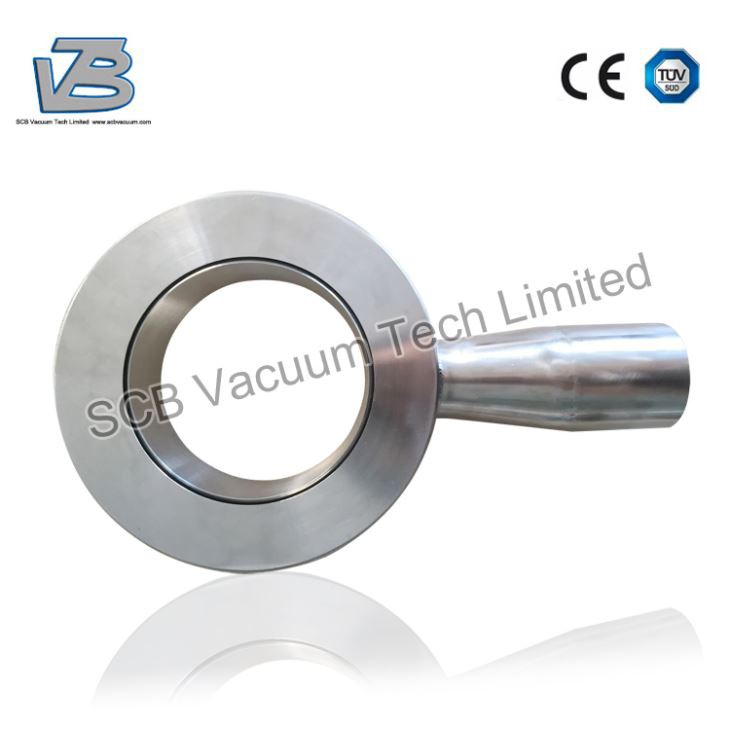

The ring air knife utilizes a unique design structure (360° uniform high pressure air flow) for cooling, drying and scrubbing pipes, cables, wire extrusions and hoses.
Introduction

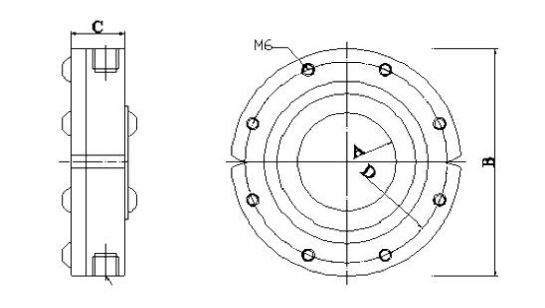

| Model | A(mm) | B(mm) | C(mm) | D(mm) | Air consumption (L/Min) |
| SCB-RING-13 | 13 | 80 | 28 | 66 | 355 |
| SCB-RING-25 | 25 | 92 | 28 | 78 | 495 |
| SCB-RING-38 | 38 | 106 | 28 | 91 | 610 |
| SCB-RING-51 | 51 | 118 | 28 | 104 | 715 |
| SCB-RING-76 | 76 | 143 | 28 | 129 | 850 |
| SCB-RING-102 | 102 | 169 | 28 | 155 | 1030 |
| SCB-RING-127 | 127 | 194 | 28 | 180 | 1370 |
| SCB-RING-152 | 152 | 219 | 28 | 205 | 1660 |
| SCB-RING-178 | 178 | 245 | 28 | 231 | 1975 |
| SCB-RING-203 | 203 | 270 | 28 | 256 | 2330 |
| Material can be made Aluminum Alloy and Stainless Steel. | |||||
1. According to the air knife inner diameter to selected model, inner diameter can be customized.
2. Usually, the inner diameter of air knife is 10-30 mm larger than the workpiece.
3. Material of air knife have aluminum alloy and stainless steel, it can be selected according to different applications.
SS - means stainless steel, suitable for food, high temperature, corrosive occasions.
SCB centrifugal blower and ring air knife drying system are provide the good drying solutions for many wire and cable production plants successfully.
Our target: to help customers spend the least amount of money, get the most production benefits, and achieve the best return on investment.
