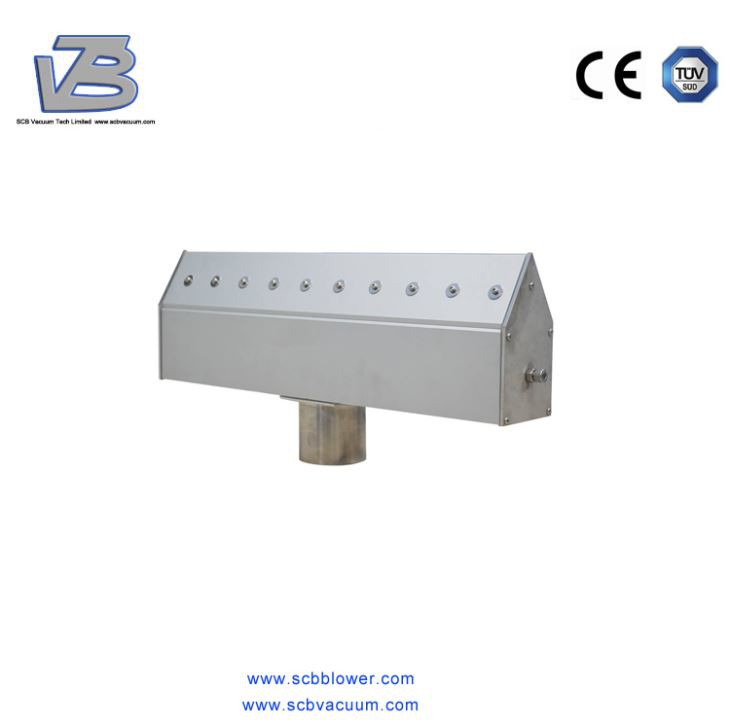

Aluminum Knives
Need a quotation for this product?
Send us your line speed, the material you are working with and the destination country. Our engineers reply with a price and a delivery time within one working day.
Or email [email protected] · Tel +86-769-33829612
Product Details
Basic Info
Model NO.: SCB-AL-600mm
Structure: Aluminum knives
Material: aluminium alloy
Inlet: 38mm, 51mm( 1'', 2'')
Length: 600mm
Required Airflow: 260m3/h
Net weight: 0.5kgs
Packages: packed in cartons
Origin: China
Trademark: SCB
SCB Aluminum Knife Features:
1. Outlet is adjustable (0.3-3mm).
2. Inlet can be customized (Max size is 51mm).
3. Material is aluminum alloy with anodized / hard anodized, acid and alkali resistant.
4. Cost-effective, save space and easy install.
5. The max borne pressure is 5kgf/cm2, and speed reaches 400m/s.
6. Hot air is available, temperature can bear 250℃.
7. Small air resistance and sym meterical speed.
SCB Aluminum Knife Attentions:
1. Aluminum alloy air knife, eg: SCB - AL - 500mm, the effective length is 500mm,
outlet size normally is 1mm (if have special requirement, please inform), material is aluminum alloy.
2. When purchase, the effect length is C, not include the cover thickness is both sides.
Eg: air knife length is 500mm, if add the cover thickness, the real length is 510mm.
3. Please avoid collision for the air knife edge during using. The air shouldn't have much thick dust,
or will obstruct or damage the air knife.
4. Air knife outlet was completely made as standard before leave factory (except the special request).
If need to change, please contact SCB team or consult the professional person

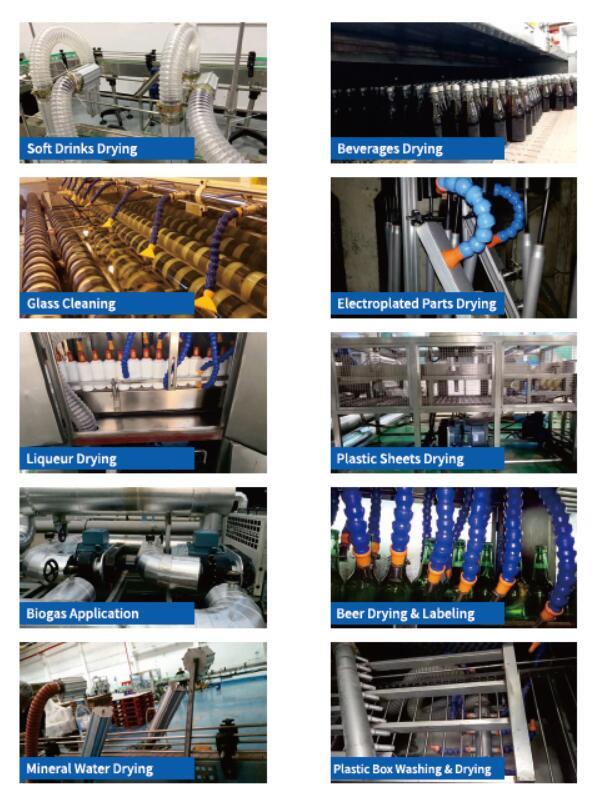

SCB Aluminum Knife Application:
